Vitrocsa
PIVOT 3001
3001 RANGE
Product Information

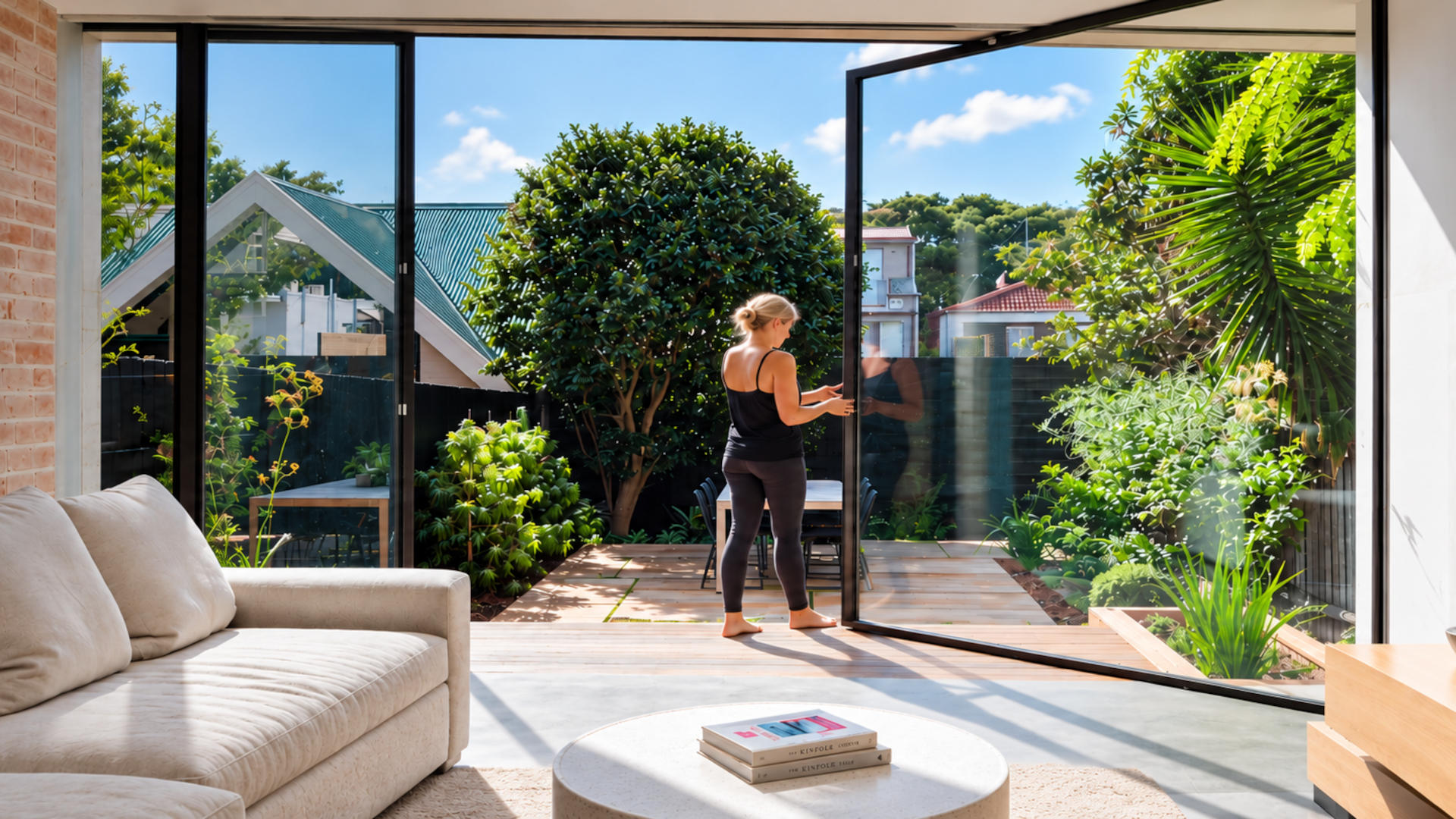

With its 26-mm-thick double glazing, the Vitrocsa 3001 range is suitable for pivoting glazed surfaces of up to 3 m² per pane depending on the wind resistance, with a visible frame of just 32 mm. The sophisticated closing system is ingeniously integrated in the lower section, enabling the door to be locked and providing a perfect seal.
This system resembles a watch mechanism, and is completely hidden inside the frame. The pivot axis may be central or offset (at least 190 mm) to create a larger opening, and a pivoting surface may be next to a sliding or fixed door.
RAILS + FRAMES
- Embedded and concealed in the floor, wall and ceiling
- Rails just 99.5 mm wide for a birail (mono: 45 mm + 9.5 mm seal)
- Saline treatment specially adapted for coastal projects
CLOSURE MECHANISM
- Rack
- Mobile cover
VERTICAL CONNECTION
- 18.5 mm
- Reinforced for very windy locations or installation at high altitudes
GLAZING
- 26 mm
- Panels up to 3 m²
OPTIONS
Pivoting (up to 3 m²)
