Vitrocsa
Invisible Frame Windows
TH+ RANGE / TWO TRACKS
Product Information

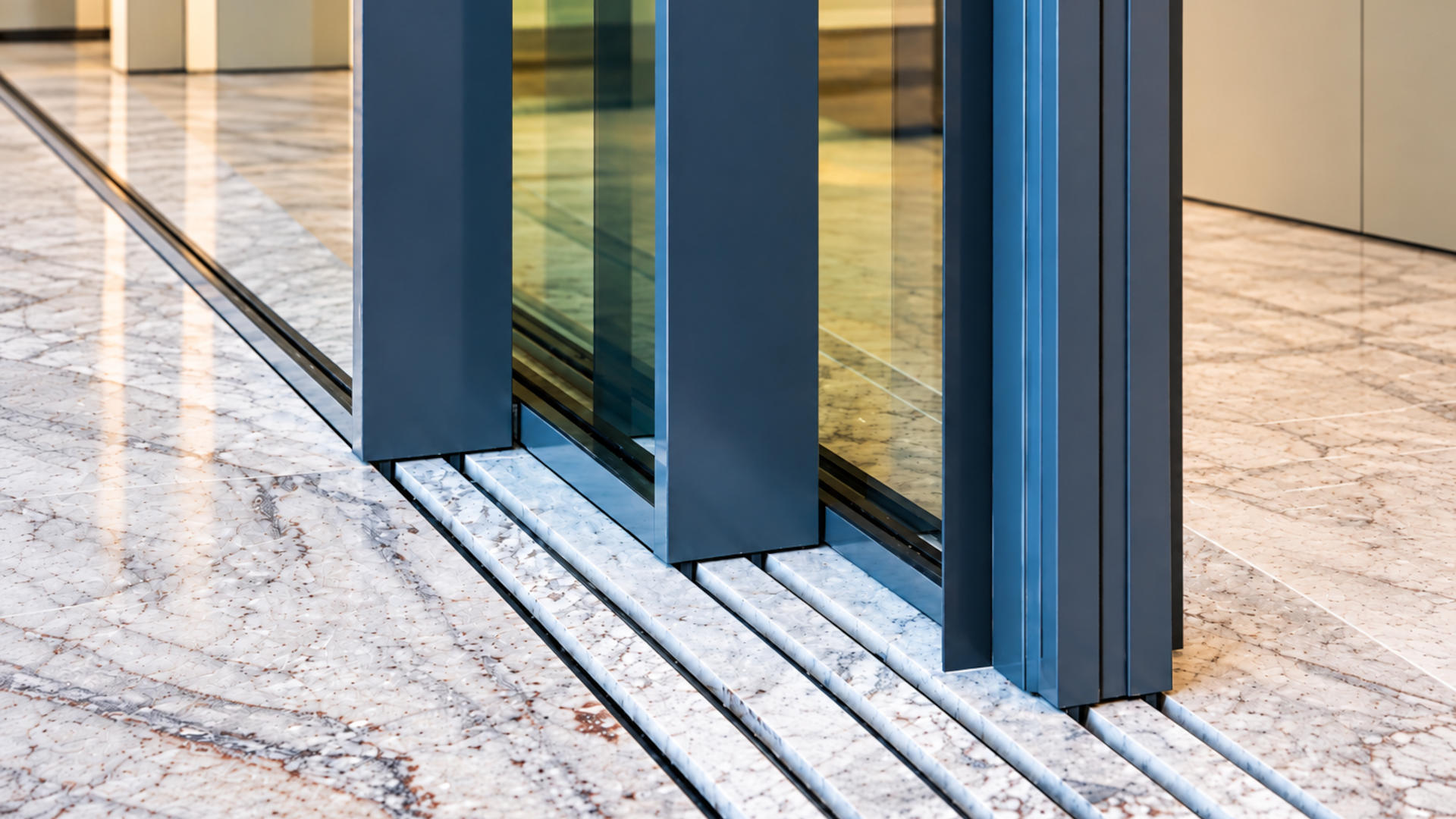

Using 32- or 44-mm-thick double or triple glazing, the Vitrocsa TH+ range with the invisible frame with two or several tracks allows for sliding glass surfaces of more than 20 m², with no weight limit. The excellent insulating properties of the profiles, in combination with the glass, meet current standards for low energy consumption.
GLAZING
- 32 mm or 44 mm
- Panels up to over 20m²
depending on glass supplier
RAILS + FRAMES
- Embedded and concealed in the floor,
wall and ceiling - Frame just 140 mm wide for a birail
(mono: 64 mm + 12 mm seal) - Saline treatment specially adapted
for coastal projects
VERTICAL CONNECTION
- 22 mm
- Reinforced for very windy locations
or installation at high altitudes
CLOSURE MECHANISM
- 1-point closure button (029, 035, 055)
- Two-point closure button
- Cylinder
- Range of options for electric closure
- Alarms
- RC2 option
